Technical Details Industry & Special Doors
Lifting gates/lifting folding systems
Folding lift gates and folding lift systems from ORMA AG offer outstanding quality and perfection in design. A special feature of the folding lift systems is that they can be planked with different materials. The planking allows the door to be perfectly integrated into the façade, so that no difference to the façade is visible. The closed door provides a high level of protection against burglary and, when the door is open, a canopy that serves as an extension of the covering. Lifting folding door | Design doors from the specialist dealer
With the developed buckling and locking system, we also ensure a high level of functional safety for our lifting folding systems. Even in wind-exposed locations. Of course, we meet the requirements of Eurocode. In addition to technical and safety requirements, we attach great importance to quality and to the design wishes of architects, planners and building owners. Almost limitless application possibilities and individual surfaces offer almost infinite architectural and design freedom.
Technical equipment
Buckling and locking system: A special locking system prevents the door from
being opened from the outside when closed.
Planking: We can produce your
planking according to customer requirements or provide it on site (e.g. expanded
metal, Trespa, wood).
Fitting: Both door leaves bend outwards while moving,
similar to an articulated joint.
Guide rail: Extruded aluminium with
integrated toothed belt system.
Polyamide coated rollers on the carriage.
Operation: Dead man's control with an emergency hand crank. The electric
drive is equipped with 230 V.
Door leaf
Two horizontal leaves with an aluminium rung frame construction.
Surface
Frame inside and outside: Aluminium anodised in E6 / EV1
Steel parts:
powder coated in RAL 9006
Accessories
Various types of panelling, e.g. Trespa, wood, aluminium cassette
Single-walled glazing
Safety
The door complies with all operating and safety requirements of EN 13241-1 and CE directives.

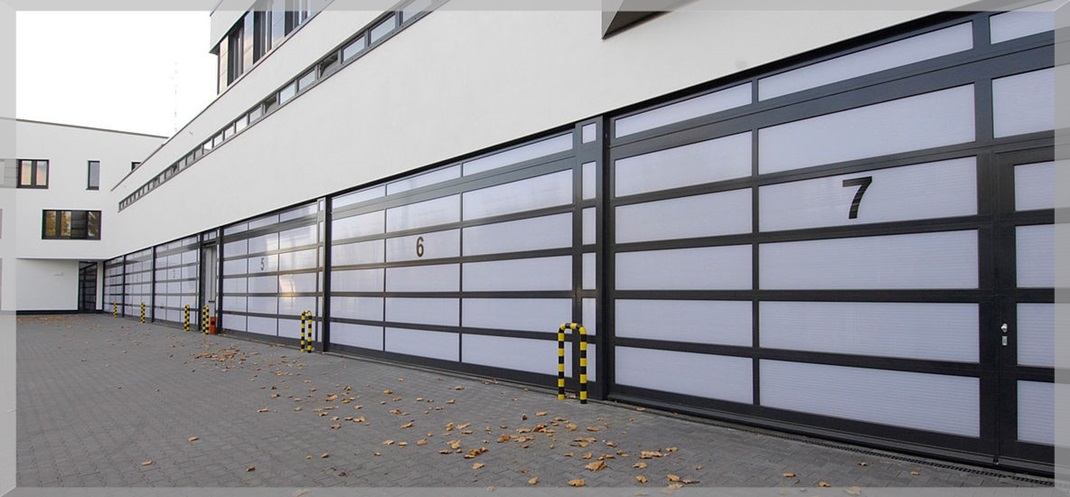

Industrial sectional doors
Aluminium frame construction (BT 404)
Aluminium, anodised in silver E6 / EV1 or RAL powder-coated
Clear SAN glass continuous rooflight possible
Normal profile or
thermally broken with basic depths of 45 or 70 cm
Steel panel construction
(BT 202)
Steel sandwich panel (inner/outer sheet stucco-designed with
horizontal beading)
Continuous rooflight type 404 made of SAN glass, clear
possible or inserted windows
Drive and control
clip-on, chain wheel or multi-comfort drive
Emergency
operation via crank, reel chain or release
Dead man control
Pulse
control with opto-sensor, electrical contact strip or leading light barrier
Frequency converter for setting the approach ramp speeds
Industrial door
| Monumental industrial doors from your door
specialist.

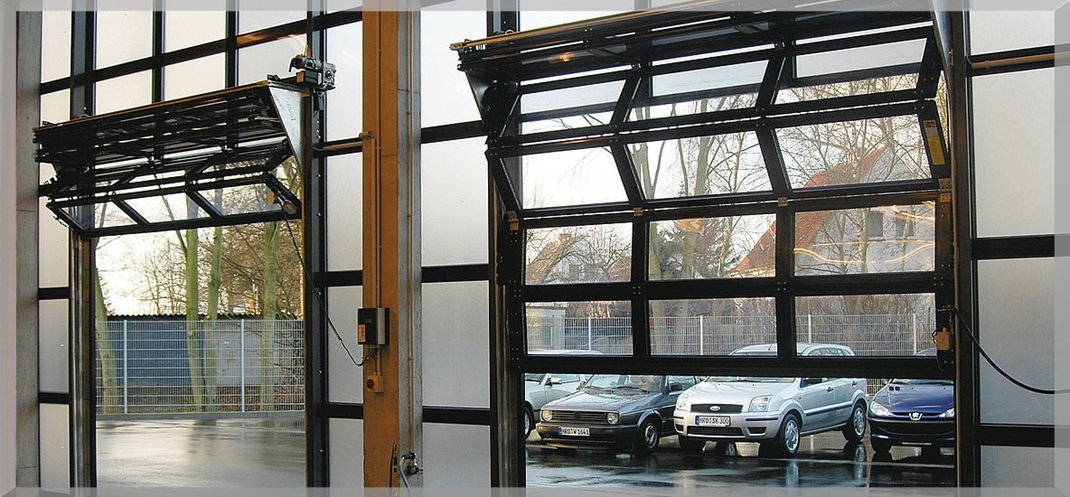

Overhead folding doors
Door leaf
Aluminium frame construction (BT 404)
Aluminium, anodised in silver E6 / EV1 or RAL powder-coated
Light band made of SAN glass, clear possible
Normal profile or thermally
separated with basic depths of 45 or 70 mm

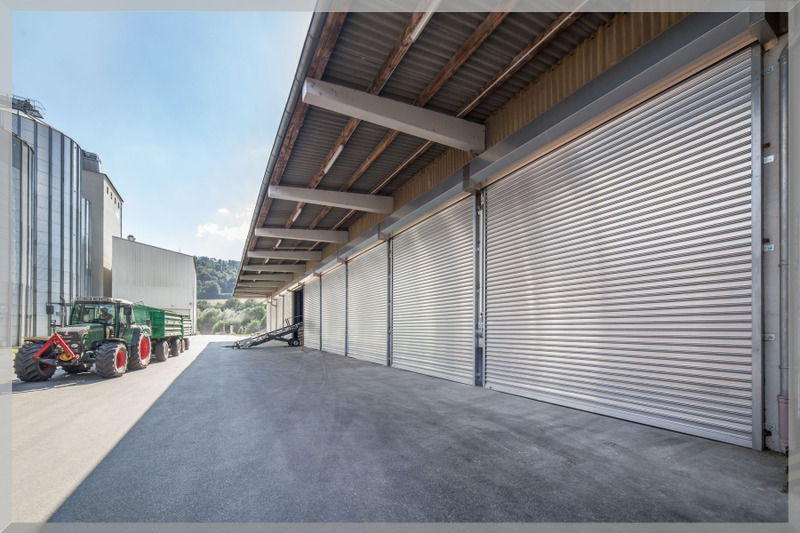

Rolling gates & roller grille gates
Roller shutters are available in various designs and can be used in a wide variety of areas. Whether aluminium, lattice or steel slats - the roller shutters are manufactured according to their area of application and specifications. As with roller shutters, sloping edges and special sizes pose no problems. This means that the customer can be guaranteed an optimum fit. A wide range of colours, perforated or perforated windows and our own drive and control systems round off the design options.
The roller shutter doors are often used in shopping centres and shopping malls, but are also ideal for other purposes.
Versions:
BeluTec roller shutters are available in the following
versions:
Aluminium (BT 691)
Single-walled / insulated aluminium slats, natural
Steel (BT 291)
Single-walled / insulated steel laths, galvanised
Drive and control
Push-on or sprocket drive
Emergency operation by crank or reel chain
Dead man control
Pulse control with opto-sensor or electrical contact
strip

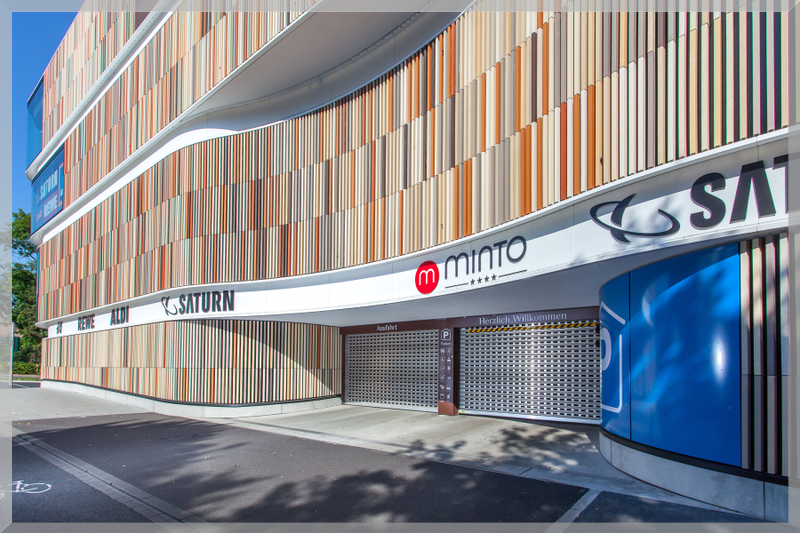

Rolling grilles are available in steel or aluminium and can be used in different areas. Previous places of use were, for example, shopping arcades or underground car park entrances. Of course, we can also produce angled edges and special sizes without any problems. Contact us and together we will develop the right roller grille for you!
Versions
Rolling grilles are available in the following versions:
Steel (BT 295)
galvanised
Aluminium (BT 695)
natural
Equipment
various honeycombs or tiles
stainless steel fabric for the higher
demand
Drive and control
Attachment drive, sprocket drive
Emergency operation by crank or reel
chain
Dead man's control
Pulse control with opto-sensor or electrical
contact strip
