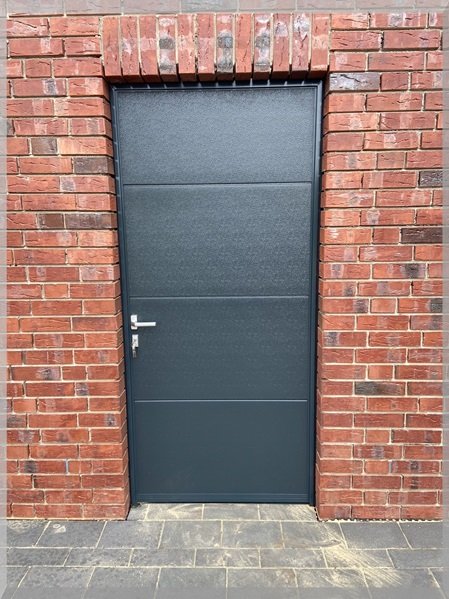

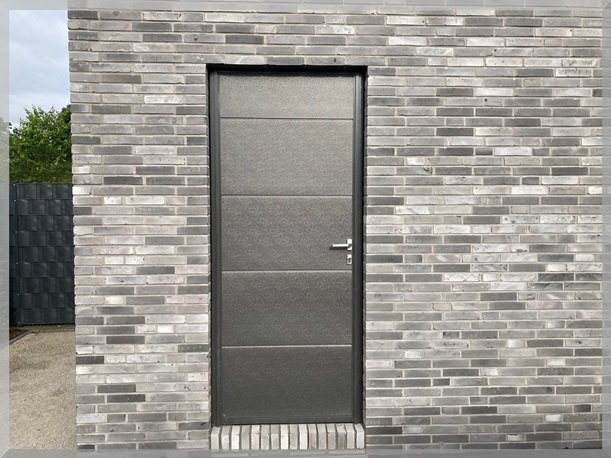

Garage side doors / side door
You have a passage garage and need the right door for your opening?
Variant 1
Side door made of non-thermally separated aluminium profiles
Frame always coated inside and outside in the colour of the door leaf, identical in appearance to the door
Panel infill 45 mm, outside white
Standard colours or RAL of your choice; infill inside RAL 9002
Continuous hinge strip
Standard lever handle set in E6/EV1 or in black
Prepared for profile cylinder, can be opened inwards or outwards
Threshold: Aluminium with brush seal
Installation possible behind or between the reveal
Variant 2
Side door made of thermally separated aluminium profiles
Very solid frame
Inside and outside always coated in door leaf colour, identical in appearance to the door
Panel infill 45 mm, outside in white
Standard colours or RAL of your choice
Filling inside RAL 9002 inserted in aluminium frame profile
Standard lever handle set E6/EV1 or Black
Prepared for profile cylinder; 3-dimensionally adjustable hinges, can be opened inwards and outwards
Threshold: Aluminium with brush seal
Installation possible behind or between the reveal

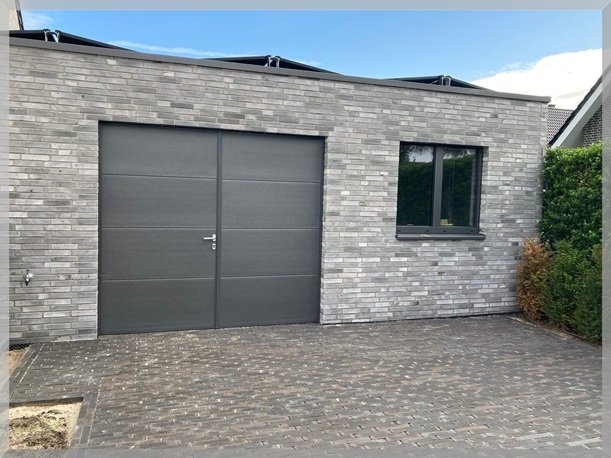

Double-wing garage doors
We manufacture double-leaf garage doors up to 2,400 x 2,350 mm frame external dimensions, in a thermally separated version or as a cold profile.
The double leaf door is divided into an inactive leaf and an active leaf, you have the choice whether to open inwards or outwards. A 1/3-2/3 division is also possible.
Variant 1
Side door made of non-thermally broken aluminium profiles
Frame always coated inside and outside in the colour of the door leaf, identical in appearance to the door
Panel infill 45 mm, outside white
Standard colours or RAL of your choice, infill inside RAL 9002
Standard lever handle set in E6/EV1 or in black
Prepared for profile cylinder, can be opened inwards or outwards
Installation possible behind or between the reveal
Variant 2
Side door made of thermally separated aluminium profiles
Frame always coated inside and outside in the colour of the door leaf, identical in appearance to the door
Panel infill 45 mm, outside white
Standard colours or RAL of your choice, infill inside RAL 9002
Standard lever handle set in E6/EV1 or in black
Prepared for profile cylinder, can be opened inwards or outwards
Installation possible behind or between the reveal
Variant 3
Side door made of thermally separated aluminium profiles, for planking on site
Or factory-fitted with wooden or aluminium planking (colours like aluminium frame doors)
Inside and outside in E6/EV1 optionally also in RAL of your choice
Standard lever handle set in E6/EV1 or in black
Prepared for profile cylinder, can be opened inwards or outwards
Installation possible behind or between the reveal
Frame profile in the respective standard colour, with wood decor similarly coated in RAL
